SPECIFICATIONS

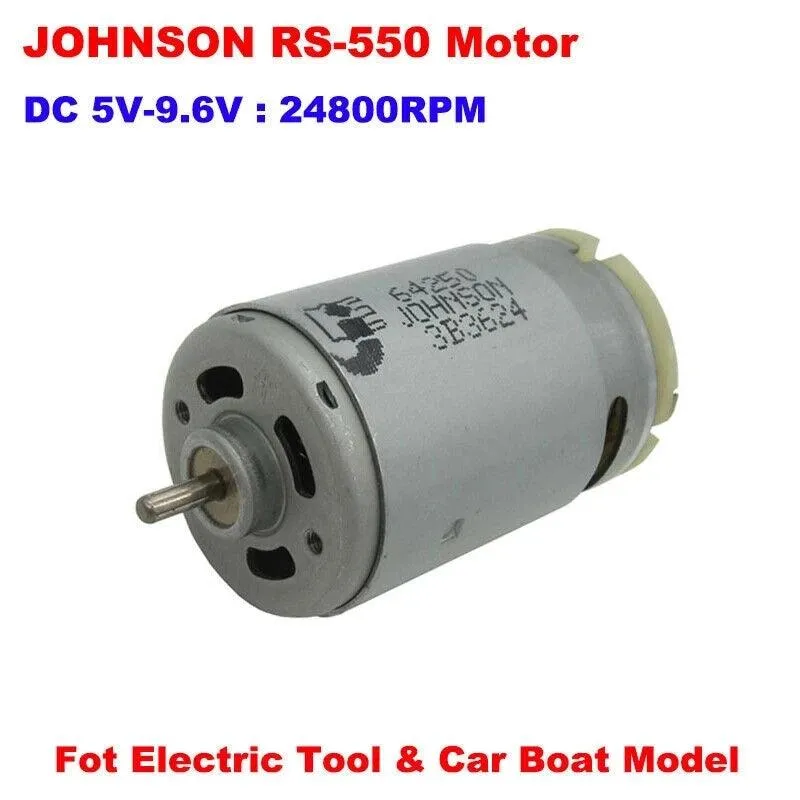

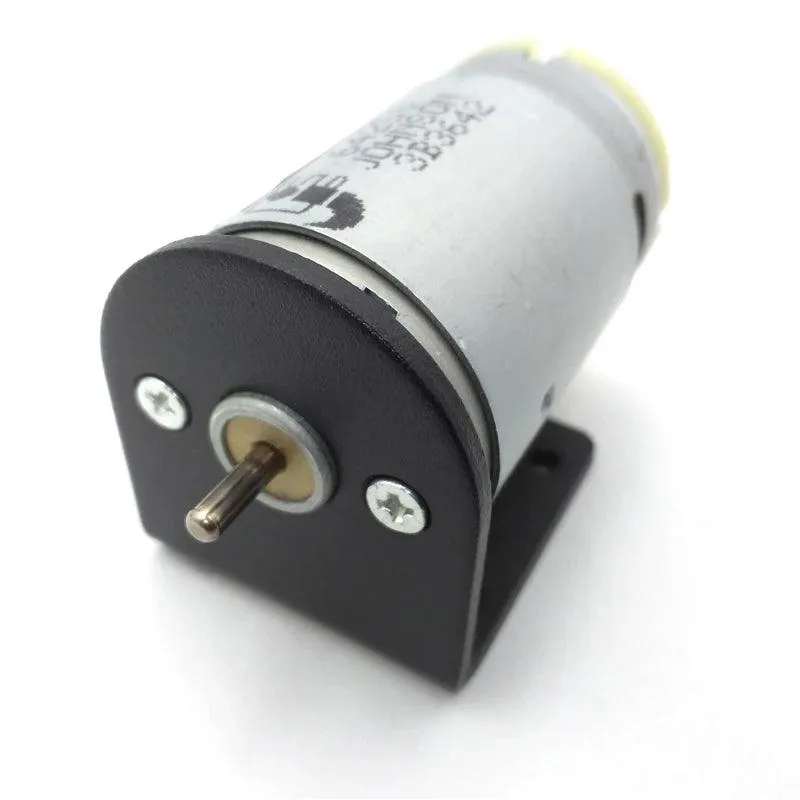

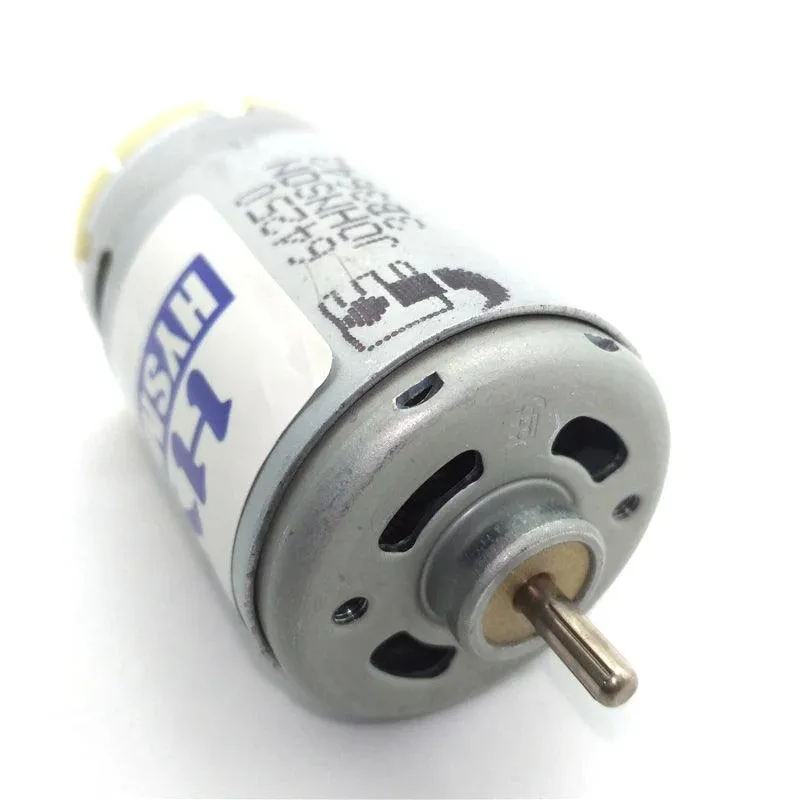

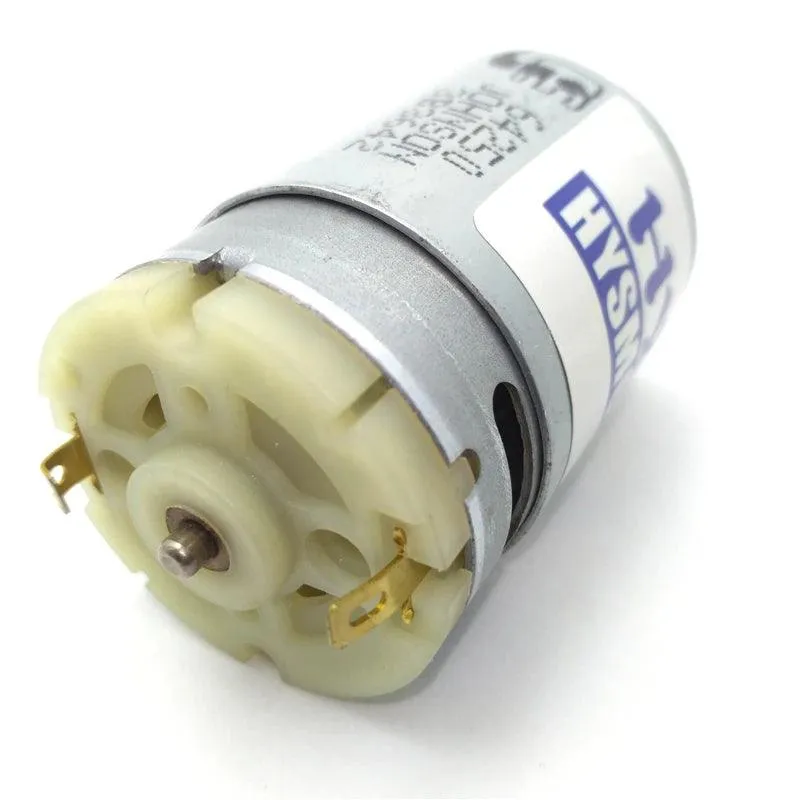

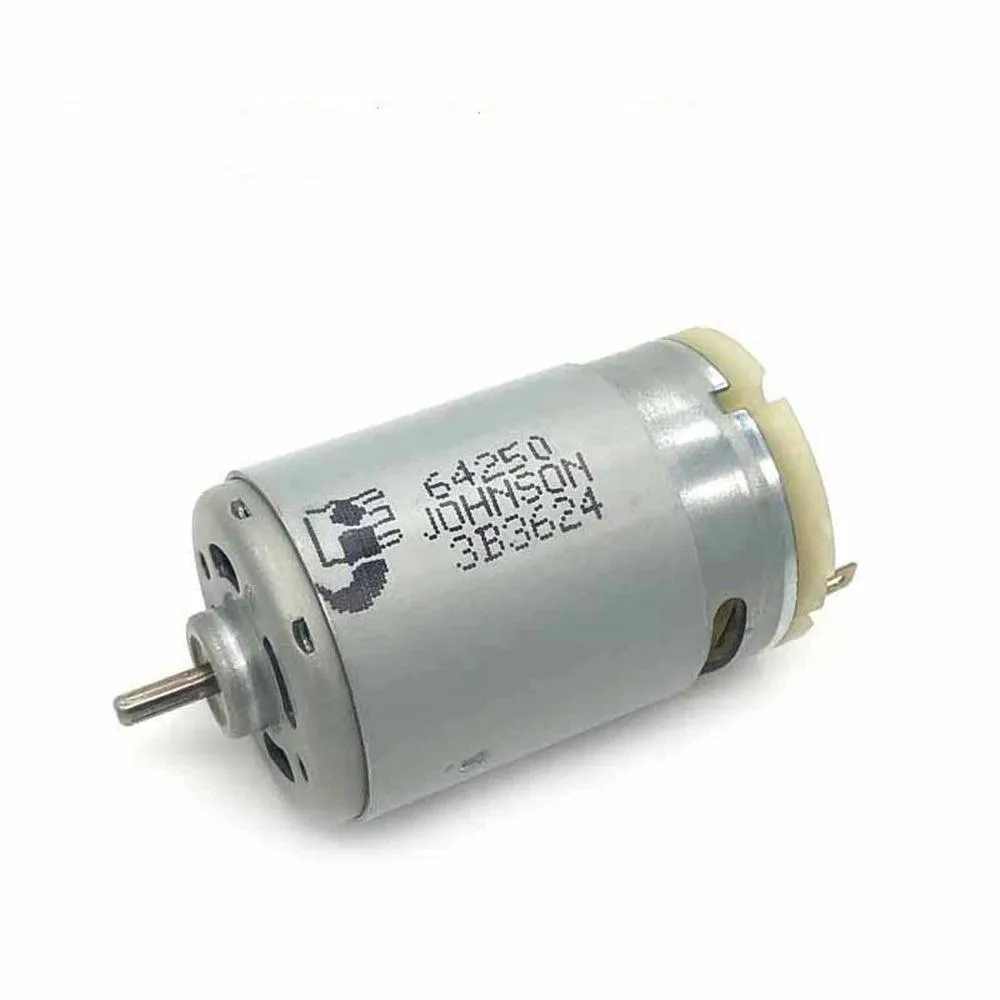

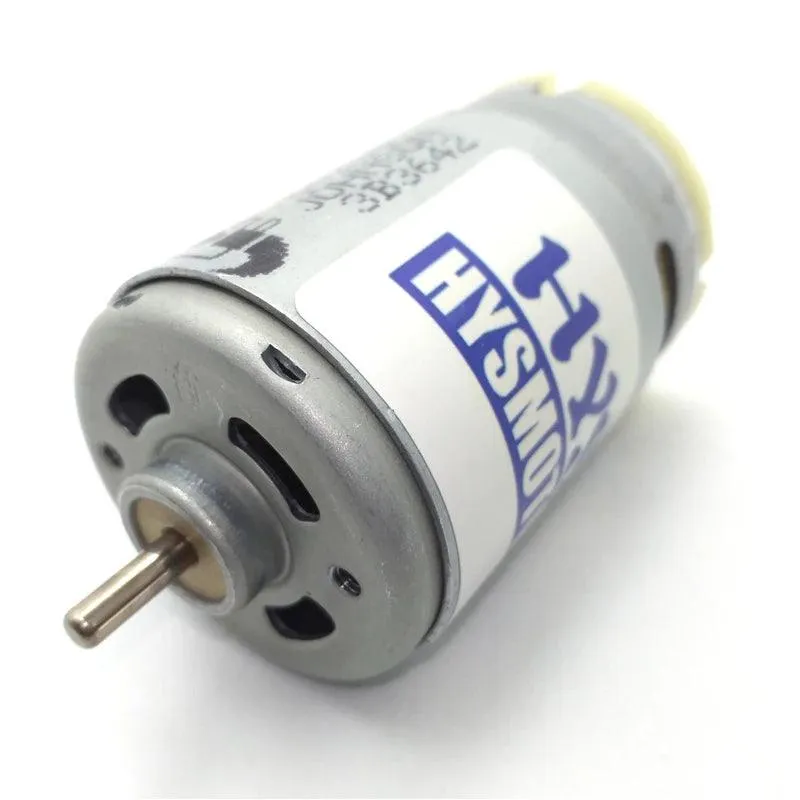

RS550 DC 6V- 9V 23000RPM High Speed High Power for Electric Drill Tools Micro Motor PWM Control Forward and Reverse
Brand Name: HYSMOTOR
HYSMOTOR Model: 540
Certification: CCC
Certification: ROHS
Origin: Mainland China
Commutation: Brush
Type: Micro Motor
Protect Feature: Drip-proof
Construction: Permanent Magnet
Usage: BoAt
Usage: car
Usage: Electric Bicycle
Usage: Fan
Usage: Home Appliance
Efficiency: IE 1
Model Number: 550 High Speed Motor
2.Model: RS-550
3.Motor diameter: 35.7mm/37.2mm(with cover)
4.Motor height: 57mm
5.Output shaft diameter: 3.17mm
6.Output shaft length: 9.6mm
7.Weight: 225g
8.Voltage range: DC 5V-9.6V
9.Test data:
Voltage:5.0V No-load current:1.40A No-load speed:12900RPM
Voltage:6.0V No-load current:1.50A No-load speed:15500RPM
Voltage:7.4V No-load current:1.65A No-load speed:19200RPM
Voltage:9.0V No-load current:1.90A No-load speed:23000RPM
Voltage:9.6V No-load current:2.00A No-load speed:24800RPM
