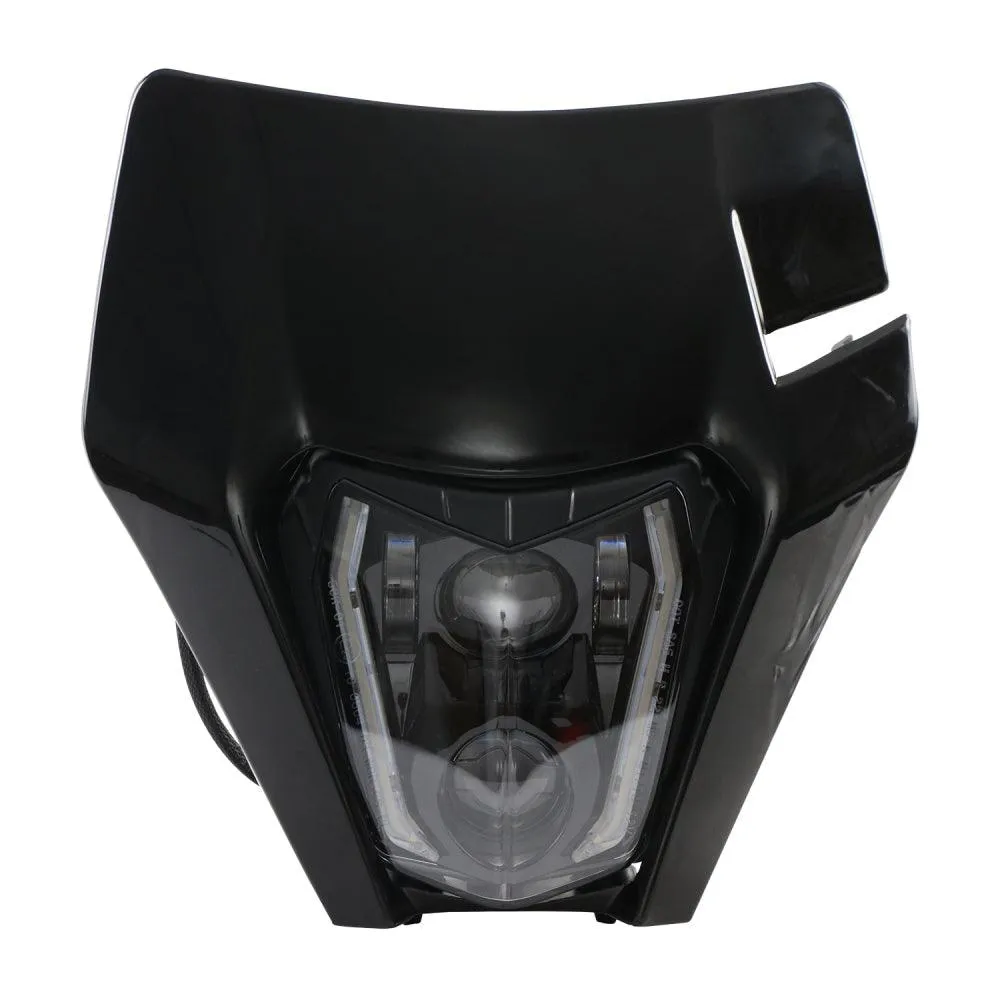

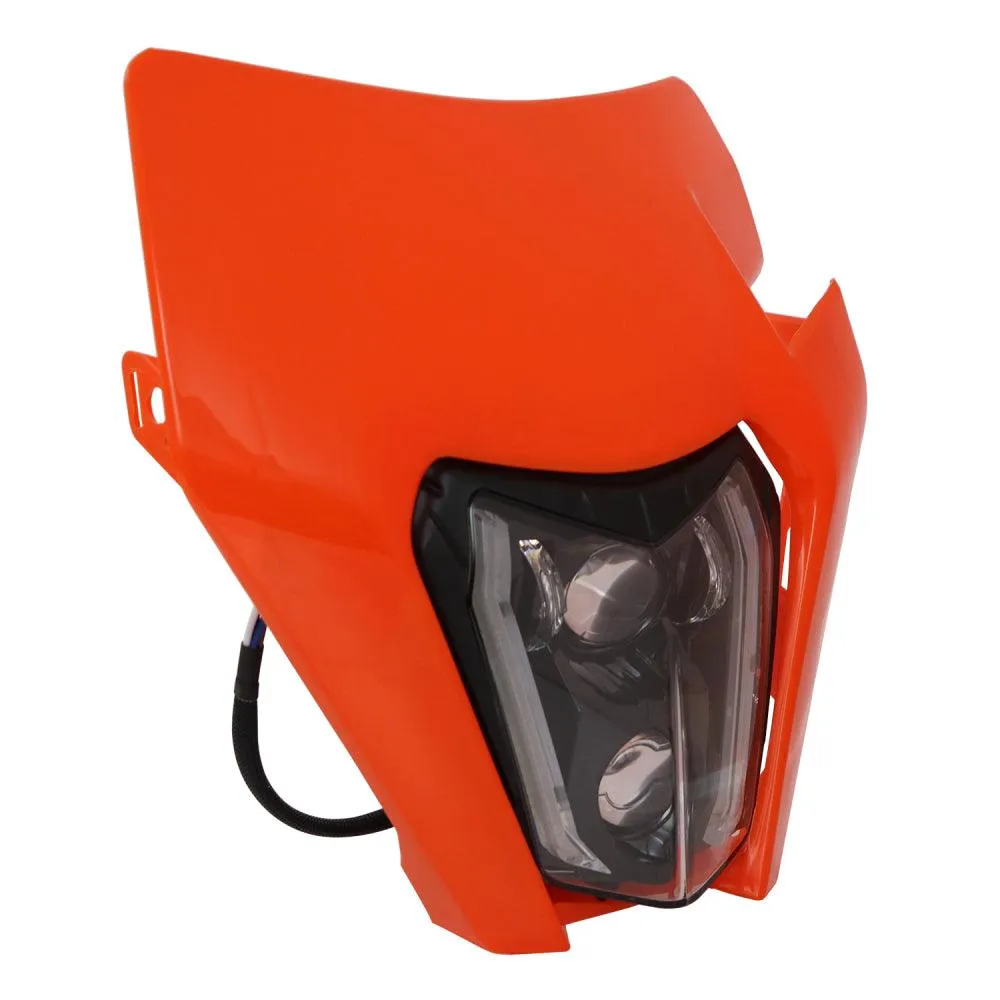

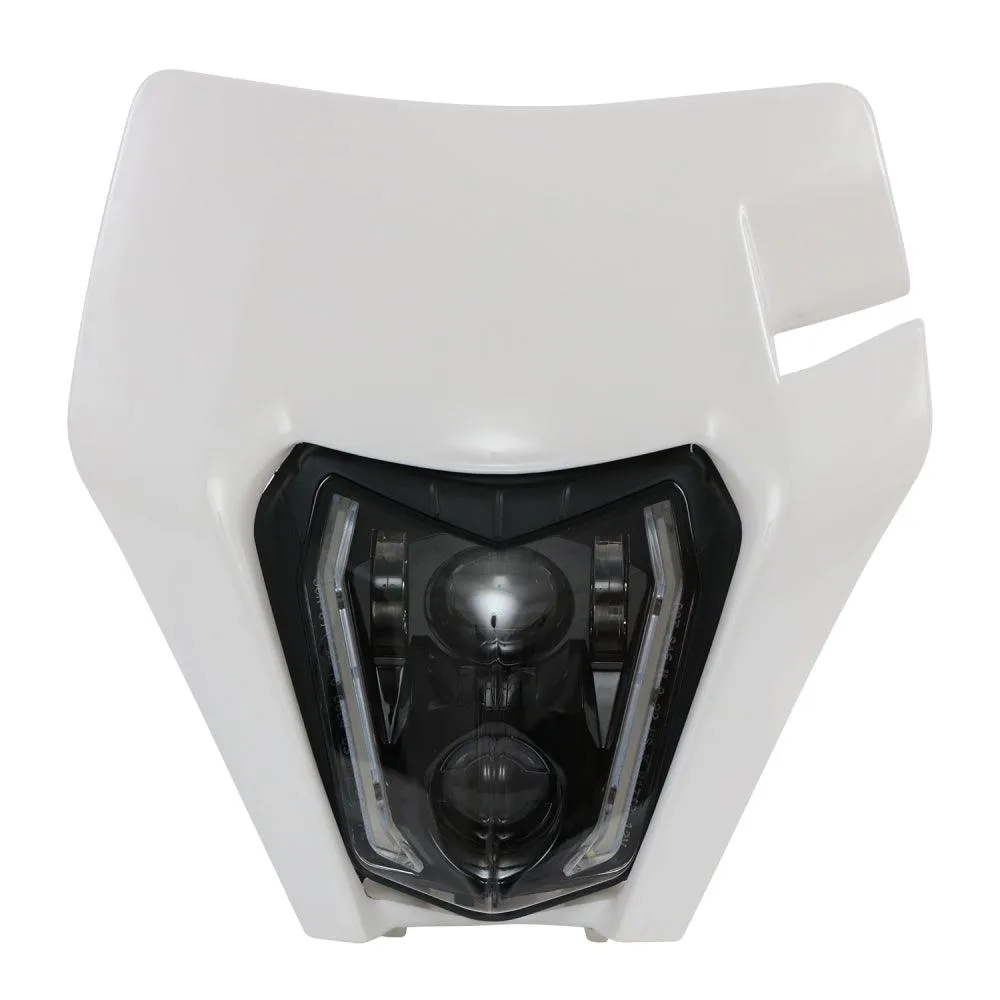

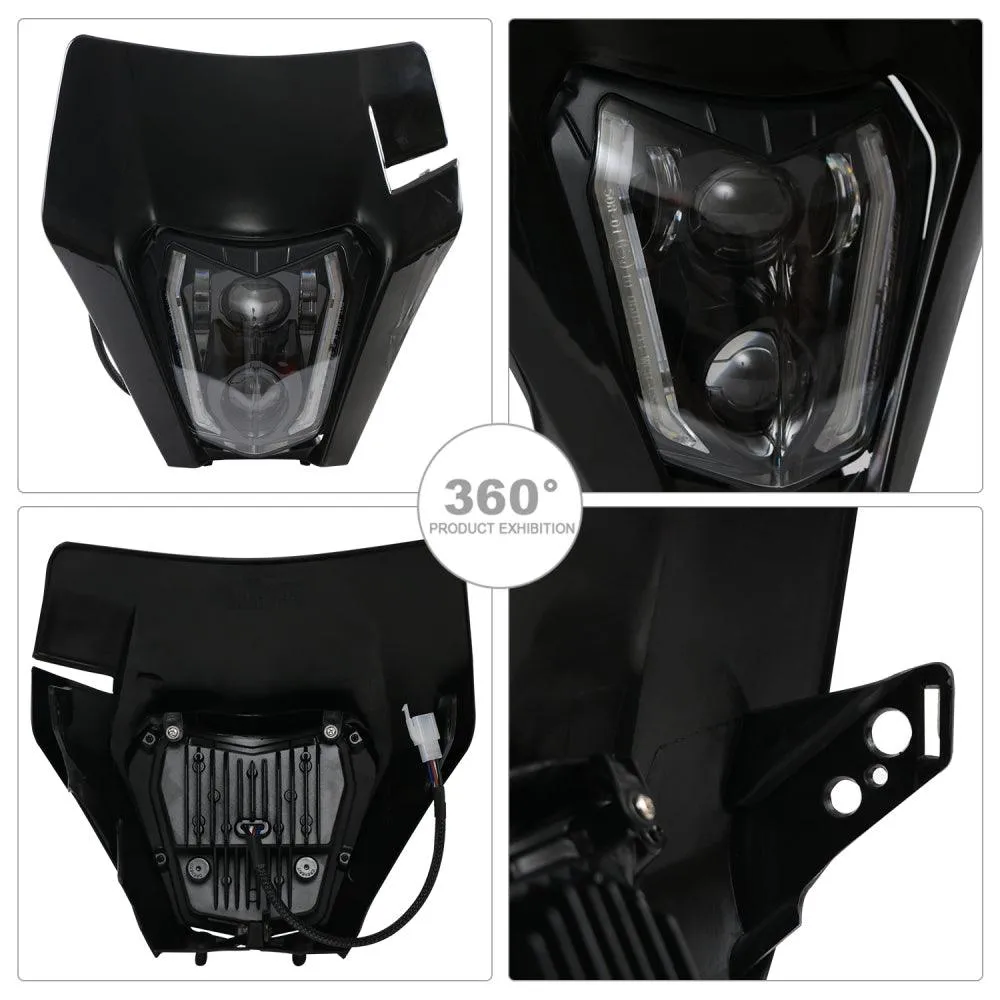

[HWCA] LED Headlight Kit For Dirt Bike

FITMENT
This LED headlight is compatible with most dirt bikes, enduro , Motocross, and Supermoto models, including CRF, EXC, KLX, DRZ, FC, YZF, and more. It comes with 2 spare adapter cables for easy installation.

DOT CERTIFIED
The LED headlight is DOT certified, ensuring it meets safety and legal standards for street use. With all LED beads as the luminous components, it offers better energy efficiency and a longer lifespan compared to traditional bulbs.

ENHANCED VISIBILITY
Equipped with a transparent convex lens, the headlight provides a wider light range and brighter illumination. The 66W, 3100LM high beam ensures clear visibility at night, helping you spot obstacles and hazards ahead.

TURN SIGNAL FUNCTION
This headlight also includes built-in turn signals, making your dirt bike street legal. The addition of turn lights allows you to safely ride your dirt bike on city roads. The turn signal lamps feature 12V voltage, 3.4W power, and 150LM output per side, ensuring clear visibility for other drivers.

LIGHTING PARAMETERS

• Wattage:
  • Low beam: 36W
  • High beam: 66W
• Lumen Value:
  • Low beam: 2100LM
  • High beam: 3100LM
  • Position lamp: 6.8W, 300LM
  • Turn signal: 3.4W (single side), 150LM (single side)

HIGH-QUALITY MATERIALS
The headlight is constructed from durable materials for superior performance:

• PC (Polycarbonate) outer lens for clear, bright light
• PP (Polypropylene) shell for impact resistance and durability
• Die-cast Aluminum shell for enhanced stability and heat dissipation, ensuring longevity in tough conditions.

SPECIFICATIONS

• Material: PP, PC, Die-cast Aluminum
• Wattage: 36W (Low beam), 66W (High beam)
• Lumen: 2100LM (Low beam), 3100LM (High beam)
• Turn Signal Power: 3.4W (single side)
• Position Lamp Power: 6.8W
• Voltage: 12V

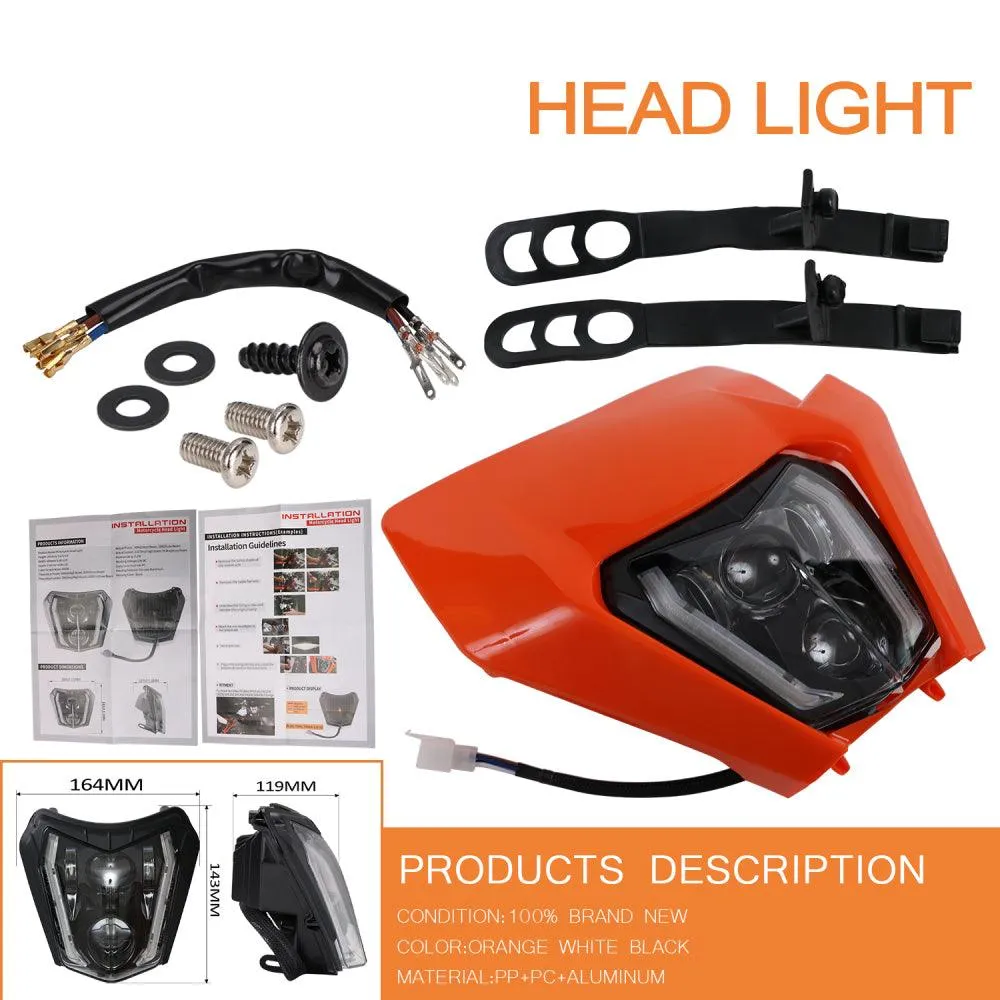

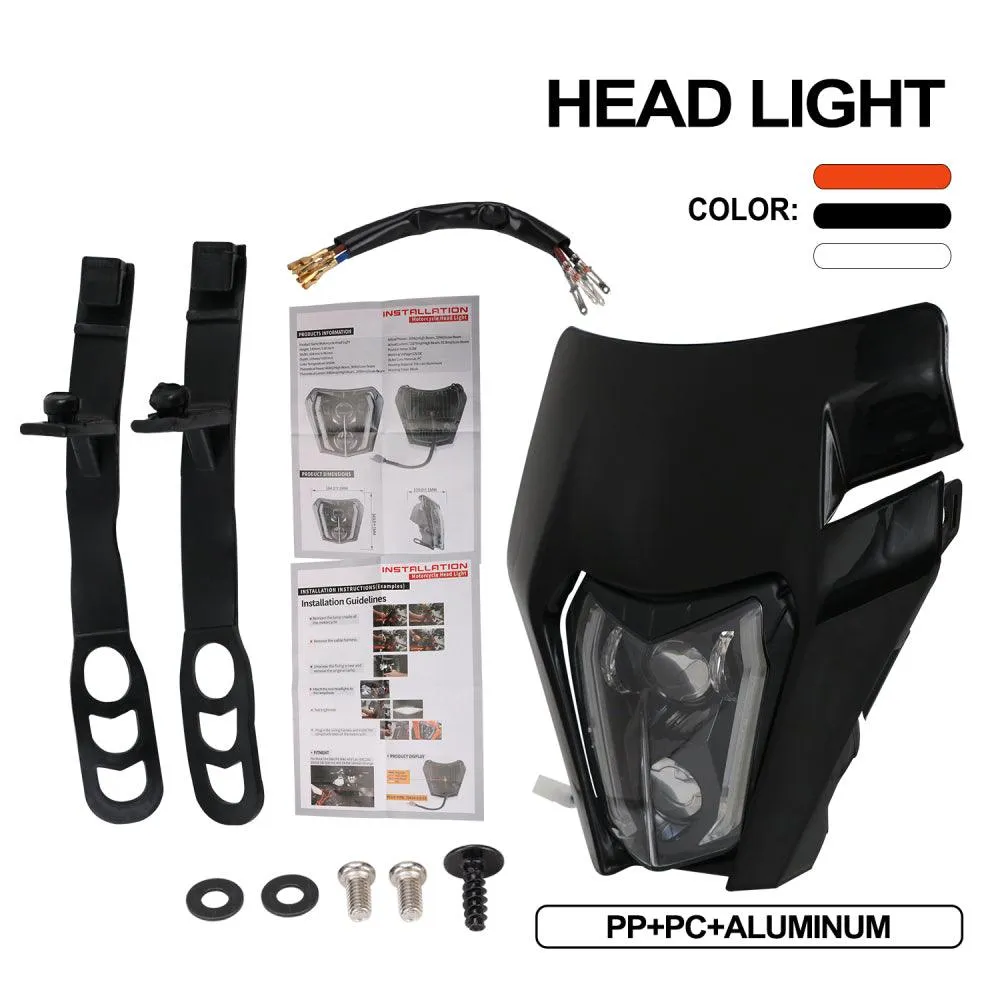

PACKAGE INCLUDES
1 x LED Headlight with Turn Signals (as shown in the pictures)
2 x Spare Adapter Cables

INSTALLATION
Note: Installation instructions are not included.
