5W VHF/UHF Analog Portable Radios for top-of-the-line communications - Call for bulk orders

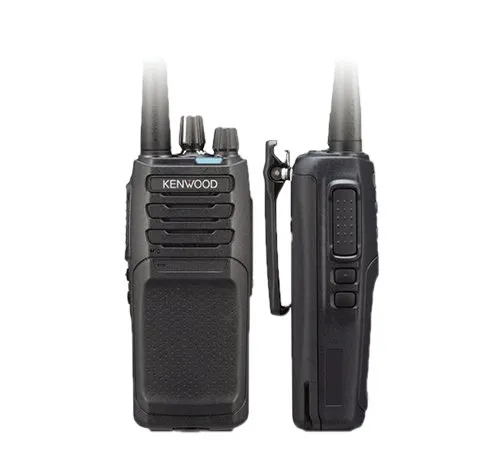

NX-1200AV/1300AU
Analog - FM
- FM Conventional Operation
- Fleet Sync: PTT ID, Stun/Revive, Talk back, Selcall
- MDC1200: PTT ID, Radio Inhibit/Uninhibited, Radio check, Emergency
- QT / DQT, DTMF, 2-tone
- Built-in Programmable Voice Inversion
- Scrambler (per channel)
- Built-in Compander (per channel)
Digital – NXDN® Mode (Optional License required)
- FDMA – Very narrow 6.25 kHz & narrow 12.5 kHz bandwidths
- NXDN Conventional Operation
- Site Roaming
- Digital / Analog Mixed mode
- Group / Individual Call
- Status / Short data, Paging Call
- Remote Stun / Kill, Monitor, Check & Control
- Digital Bit Scrambler
- Late Entry
- Over-the-Air Alias (OAA)
Digital – DMR Mode (Optional License required)
- TDMA 2-slot 12.5 kHz bandwidth equivalent to 6.25 kHz very narrow bandwidth
- DMR Tier II Conventional Operation
- Site Roaming
- DMR Auto Slot Select
- Dual Slot Direct Mode
- Digital / Analog Mixed mode
- Call Interruption
- Group / Individual Call
- Status / Short data, Paging Call
- Remote Stun / Kill, Monitor, Check & Control
- Enhanced Encryption (ARC4)
- Digital Bit Scrambler
- Late Entry
- Over-the-Air Alias (OAA)
Features
- Choose from direct & intuitive LCD with standard keypad or basic enclosures
- Easy visible Display: 8-digit LCD models featuring high-contrast, white backlit LCD
- Large 7-Color LED indicator on the top panel
- Selective Power-on LED
- Selective Call Alert LED
- Battery Level Indication
- Multi-status function indication
- RF output power 5W both on VHF/UHF
- Renowned KENWOOD Audio Quality: TX/RX audio profile with optimizable
- digital processor
- Audio Equalizer: Flat, High, Low
- Auto Gain Control: On, High, Low, Off
- Noise Suppressor
- Microphone type settings
- Multiple Scan Functions; Dual Priority, Single Priority, Single Zone, Multi,
- Normal Scan
- VOX & PTT –triggered Semi- VOX, Voice-operated TX
- Emergency Function: Customizable Emergency Profile
- Lone Worker
- Max / Min Volume setting & Volume control
- Voice Announcement
- Remote Stun / Kill / Check
- Front Panel Programming Mode (for Keypad model)
- Electronic Serial Number (ESN)
- MIL-STD-810 C/D/E/F/G
- IP54 and IP55
- Multi-protocol digital radio: Designed to operate under NXDN or DMR digital and FM
- analog protocols (Optional License required)
SPECIFICATIONS
| General | NX-1200AV | NX-1300AU | |
|---|---|---|---|
| Pre-set Frequencies | Type 1 | 136-174 MHz | 450-520 MHz |
| Type 2 | 400-470 MHz | ||
| Max. Channels per Radio | 260 (64 for basic model) | ||
| Number of Zones | 128 (4 for basic model) | ||
| Max. Channels per Zone | 250 (16 for basic model) | ||
| Channel Spacing | Analog | 30*1 / 25*1 / 15 / 12.5 kHz | |
| Digital | 12.5 / 6.25 kHz | ||
| Power Supply | 7.5 VDC ±20 % | ||
| Battery Life | DMR | Analog/NXDN | |
| KNB-45L (2000mAh) | Approx. 14.5 hours (15 hours for Basic model) | Approx. 11 hours (11.5 hours for Basic model) | |
| KNB-69L (2550mAh) | Approx. 19 hours (19.5 hours for Basic model) | Approx. 14 hours (14.5 hours for Basic model) | |
| Operating Temperature (Radio only) *2 | -22°F to 140°F (-30°C to 60°C) | ||
| Frequency Stability (-30 to 60°C; 25°C Ref.) | ±0.5 ppm | ||
| Antenna Impedance | 50 Ω | ||
| Dimensions | (W x H x D) Projections Not Included | ||
| Radio with KNB-45L | |||
