SPECIFICATIONS

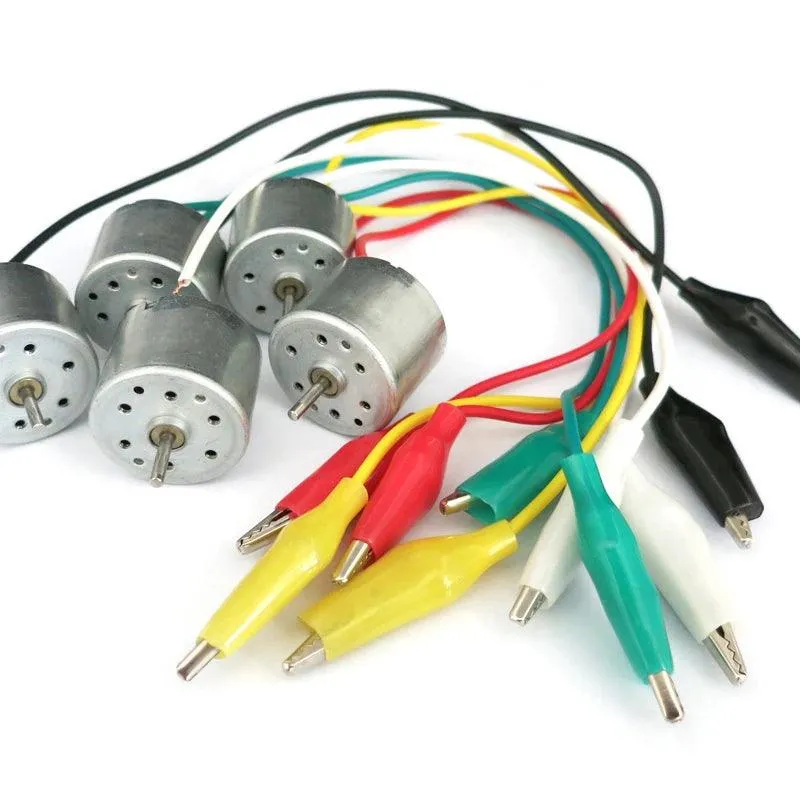

5pcs Alligator Clip Line Solar Motor 310 High Speed DC 3V 6V 4000rpm 7000rpm Electric DC1.5V-6V DIY Engine Toys Fan Boat Car
Brand Name: HYSMOTOR
Certification: CCC
Certification: ROHS
Origin: Mainland China
Commutation: Brush
Type: Micro Motor
Protect Feature: Drip-proof
Construction: Permanent Magnet
Model Number: 310

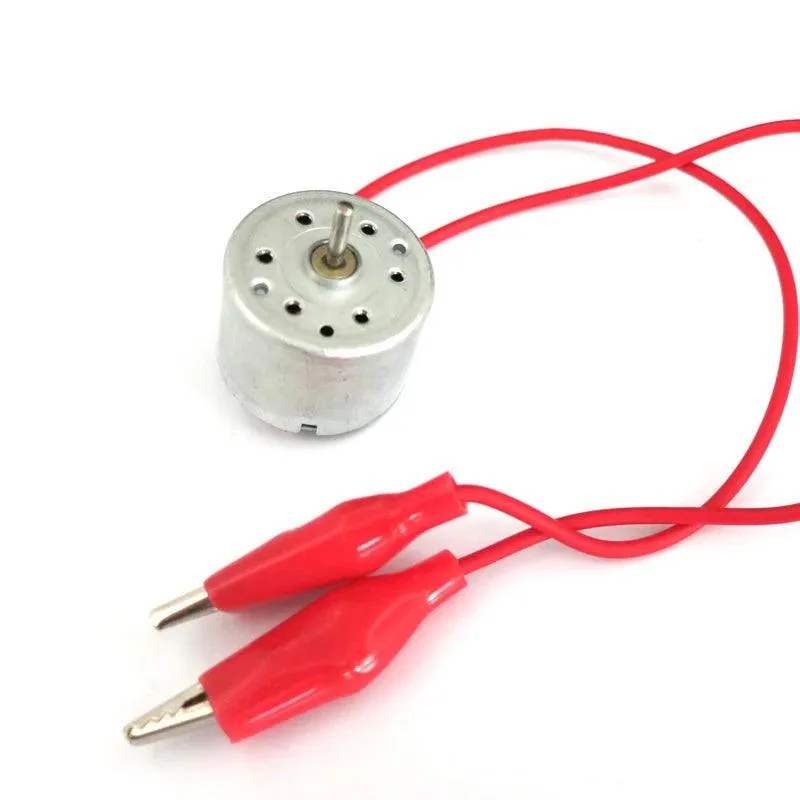

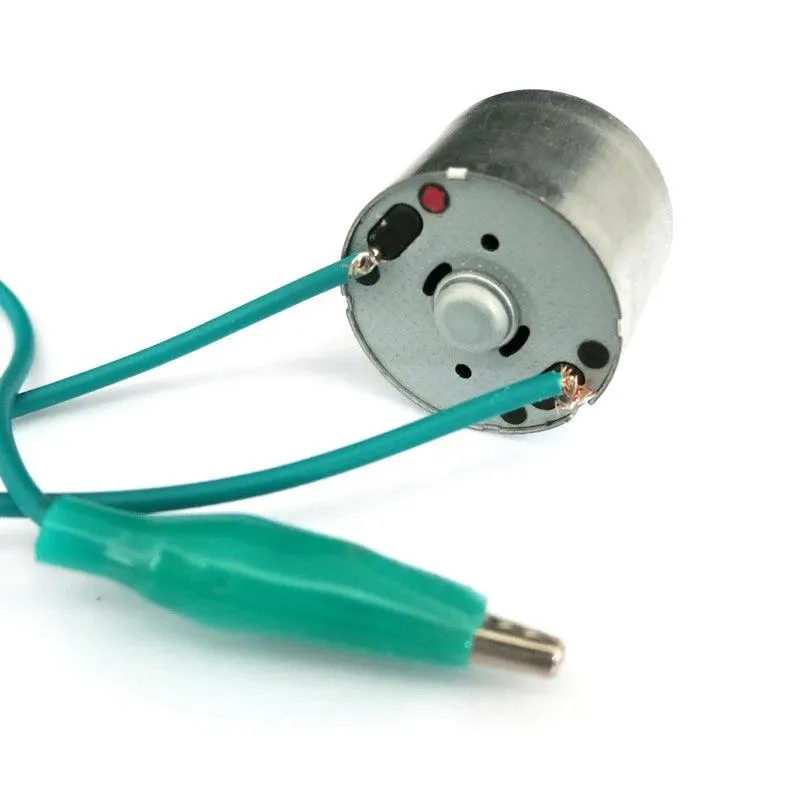

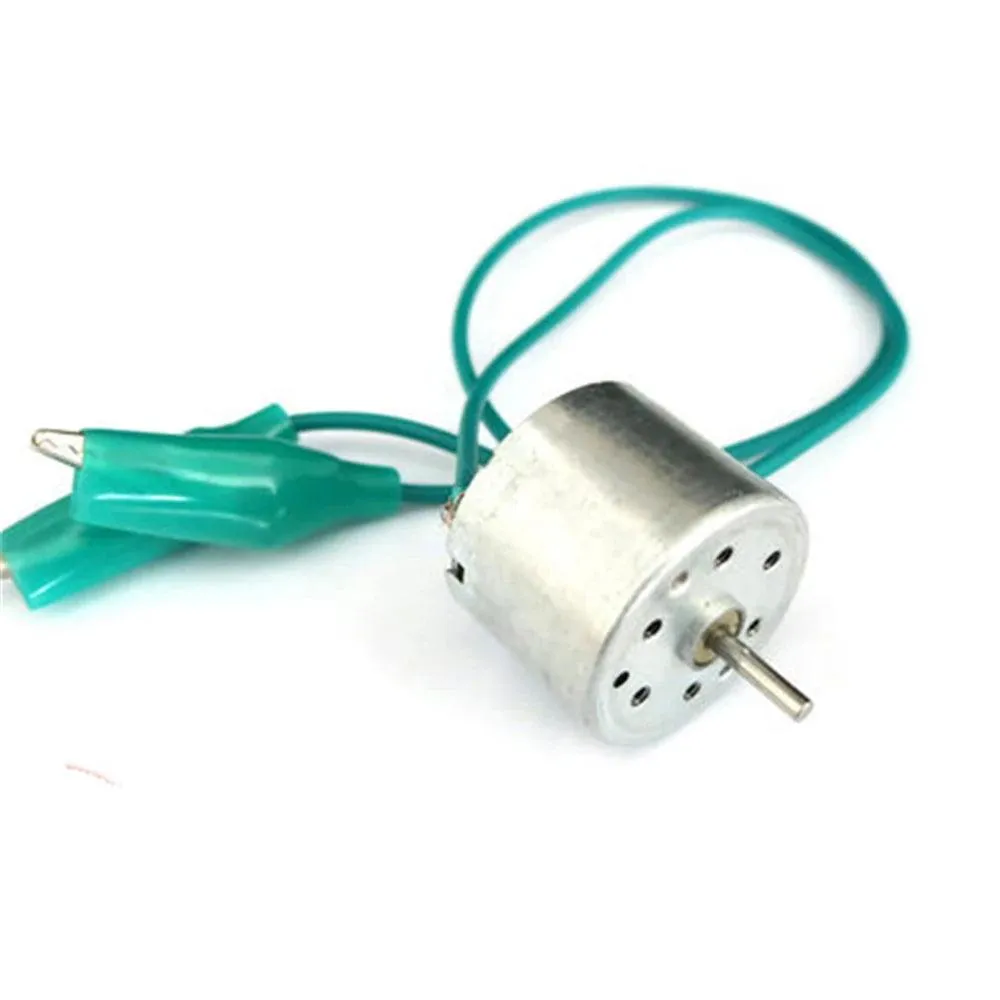

The crocodile clip wire 310 motor, this motor has been welded to the crocodile clip wire, you can directly clamp the crocodile clip to the solar panel solder to connect the solar panel, put the solar panel in the sun, the motor can rotate Too.
Note that the color of this wire is random, not necessarily black, and may be other colors, shipped randomly.
Motor height: 18mm
Motor diameter: 24mm
Motor shaft diameter: 2mm
Motor shaft length: 6.3mm
Motor voltage: DC 1.5v-6v
Motor speed:
DC 3v, no-load speed is about 4000 rpm,
DC6v, no-load speed is about 7000 rpm
Motor current:
DC 3v, current is 20ma, locked rotor current is 260ma,
DC6v, the current is 30ma, and the stall current is 480ma
Chuck length: about 25mm
Wire length: about 22 cm
Wire thickness: about 2mm
