SPECIFICATIONS

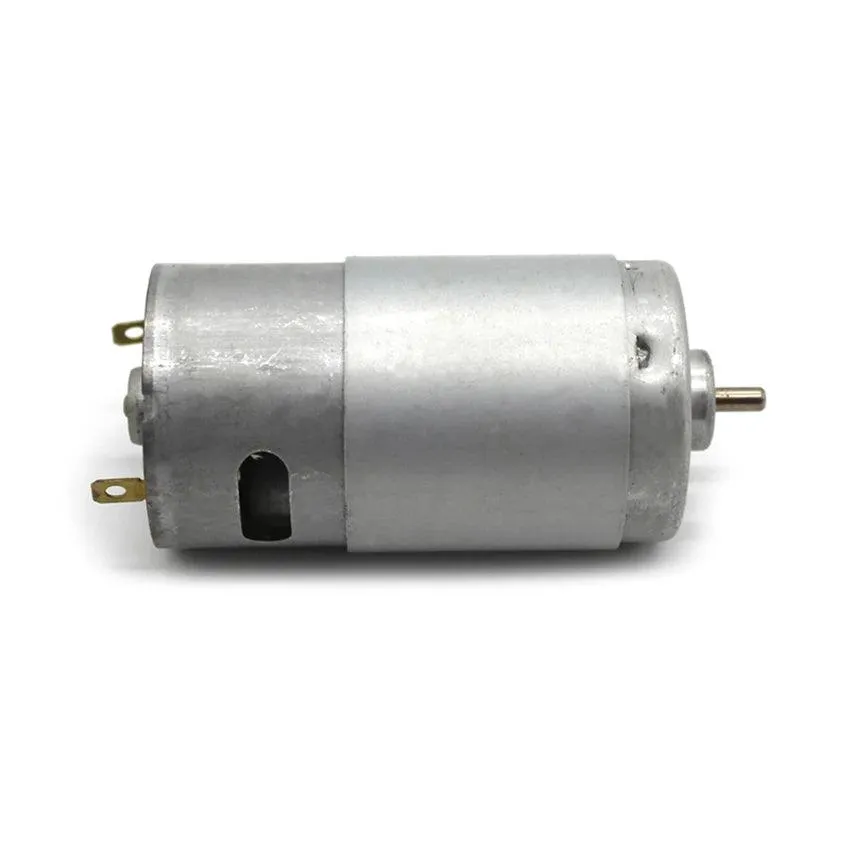

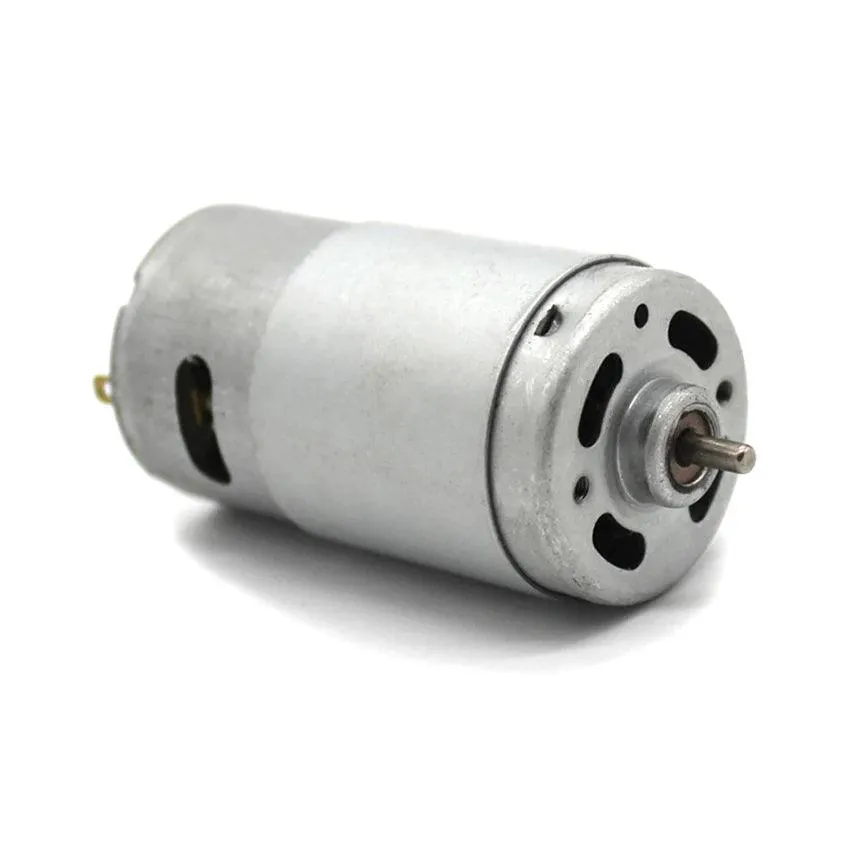

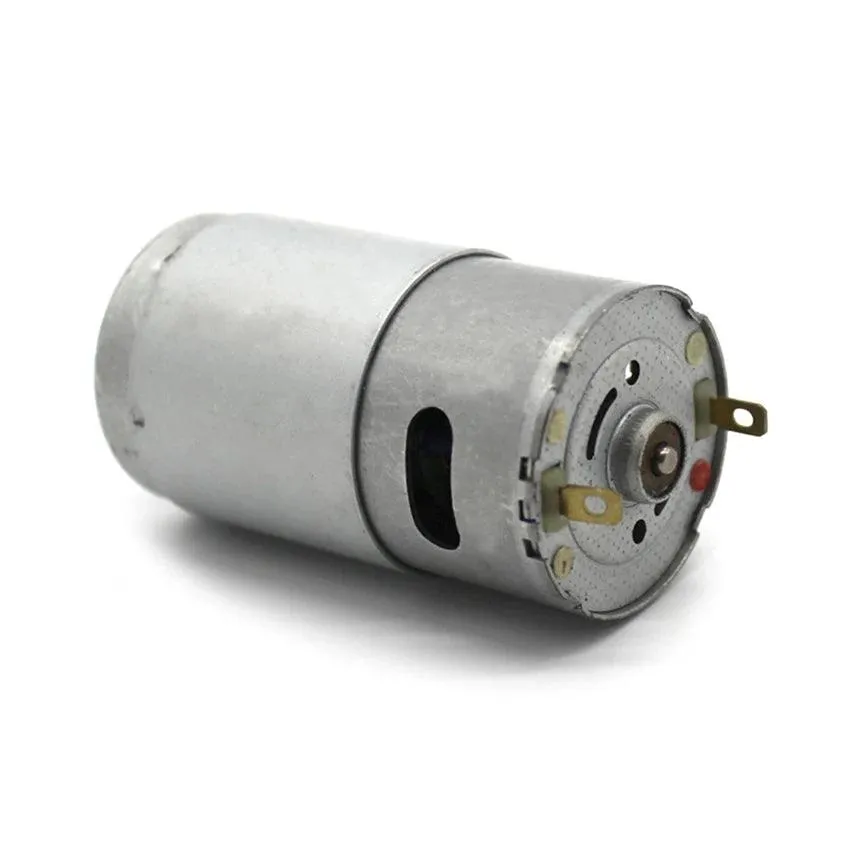

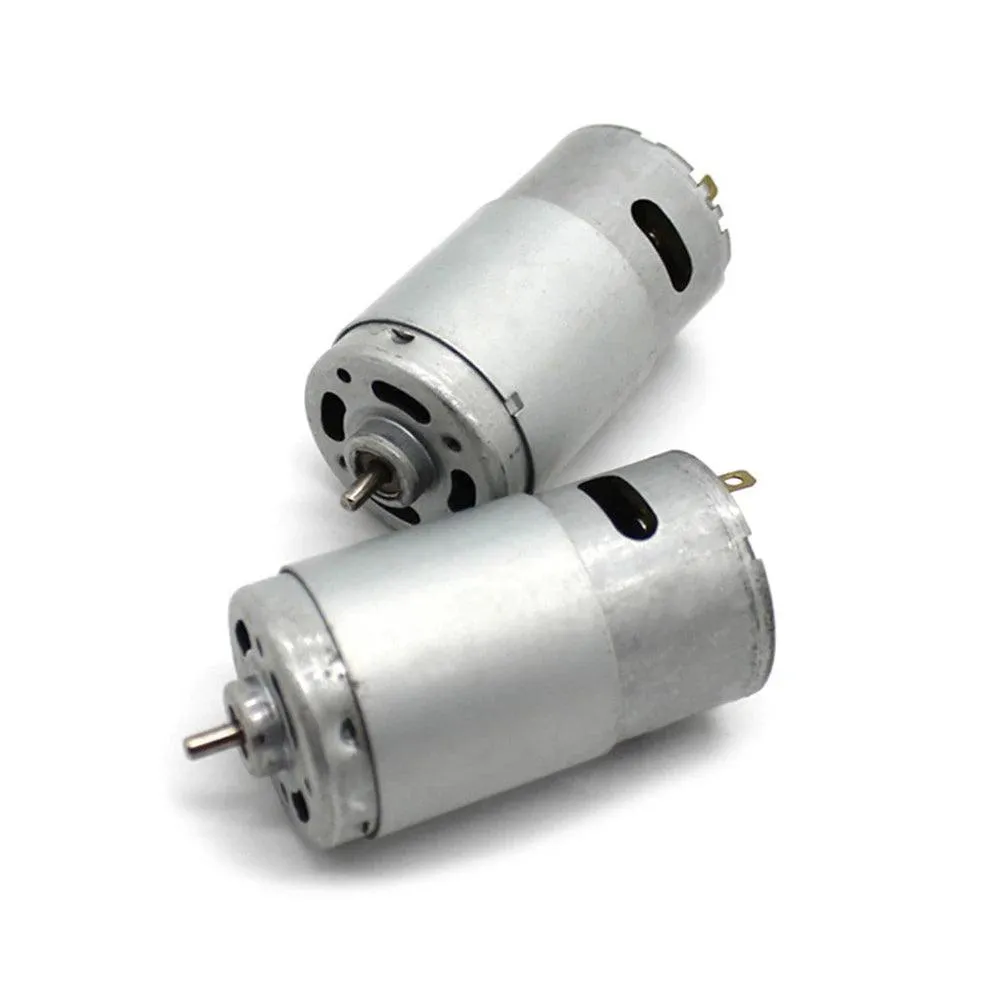

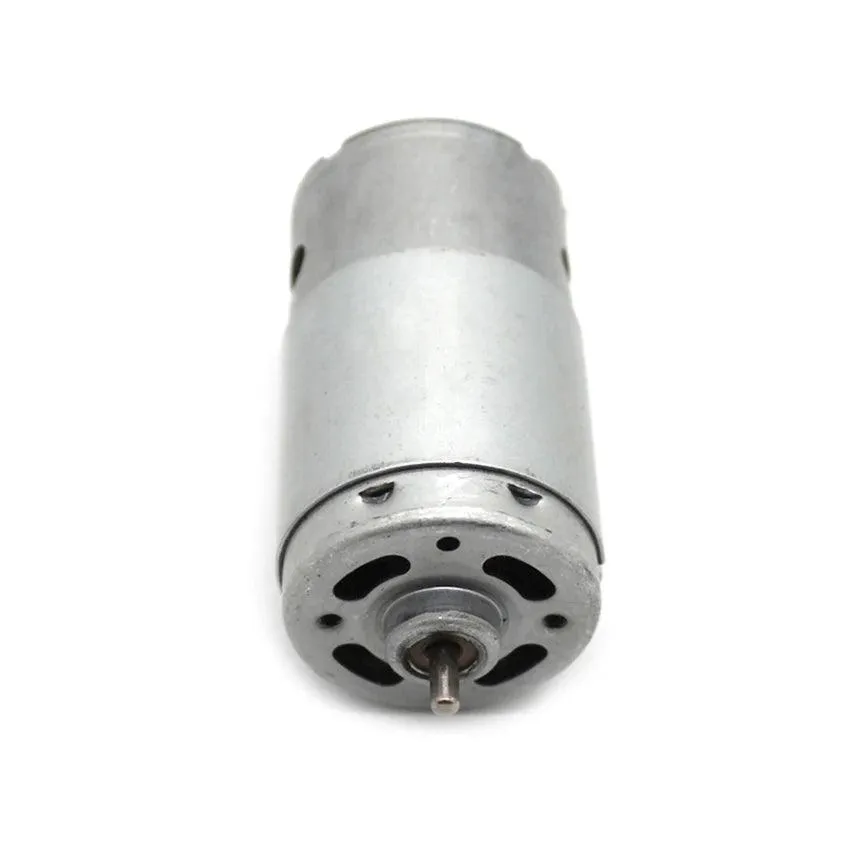

575 Micro DC Motor 12V 3200rpm High Speed Large Torque Metal Moter Low Noise Electric DC12V DIIY Technology Tool Model Drill
Brand Name: HYSMOTOR
Certification: CCC
Certification: ROHS
Origin: Mainland China
Commutation: Brush
Type: Micro Motor
Protect Feature: Drip-proof
Construction: Permanent Magnet
Model Number: 575 DCmotor
575 motor, 3.175 mm shaft diameter, need 12V voltage drive Oh! It is suitable for making all kinds of handicrafts.
Rated voltage: DC 12V
Product speed: about 3200 rpm
Motor diameter: 37mm
Step height: 4.5mm
Step diameter: 13mm
Motor length: 65.4mm (excluding shaft)
Shaft diameter: 3.17mm
Motor shaft length: 7mm
Installation hole distance: About 25mm
Mounting aperture: m3 (fixed with 3mm screw)
