SPECIFICATIONS

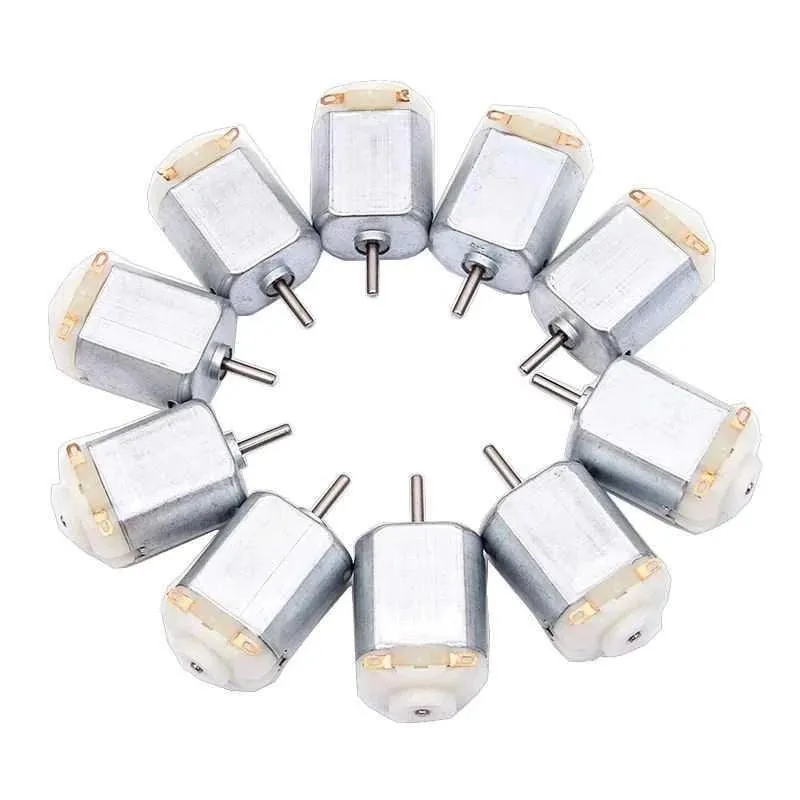

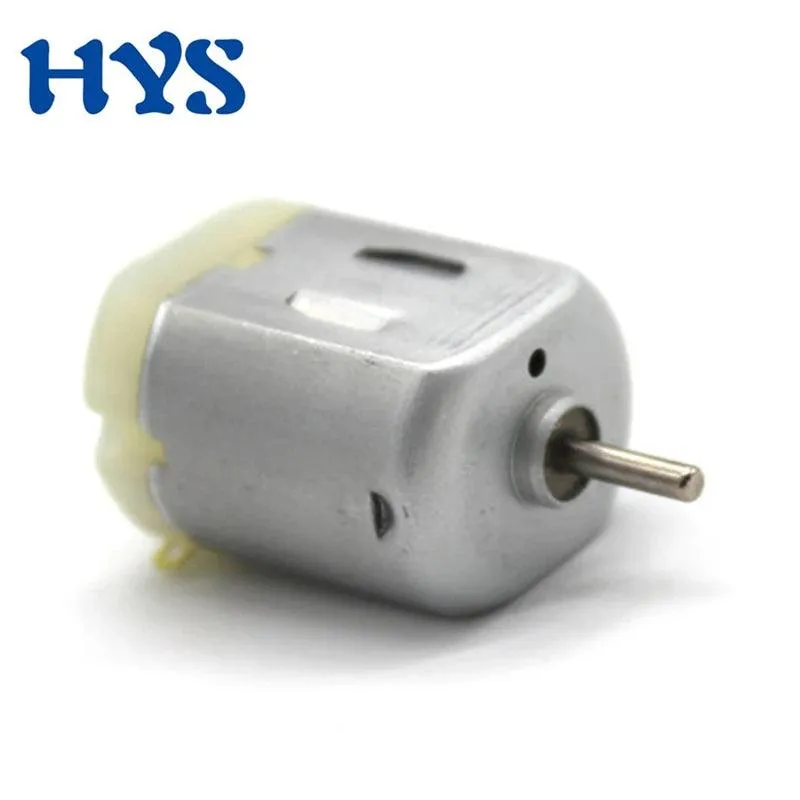

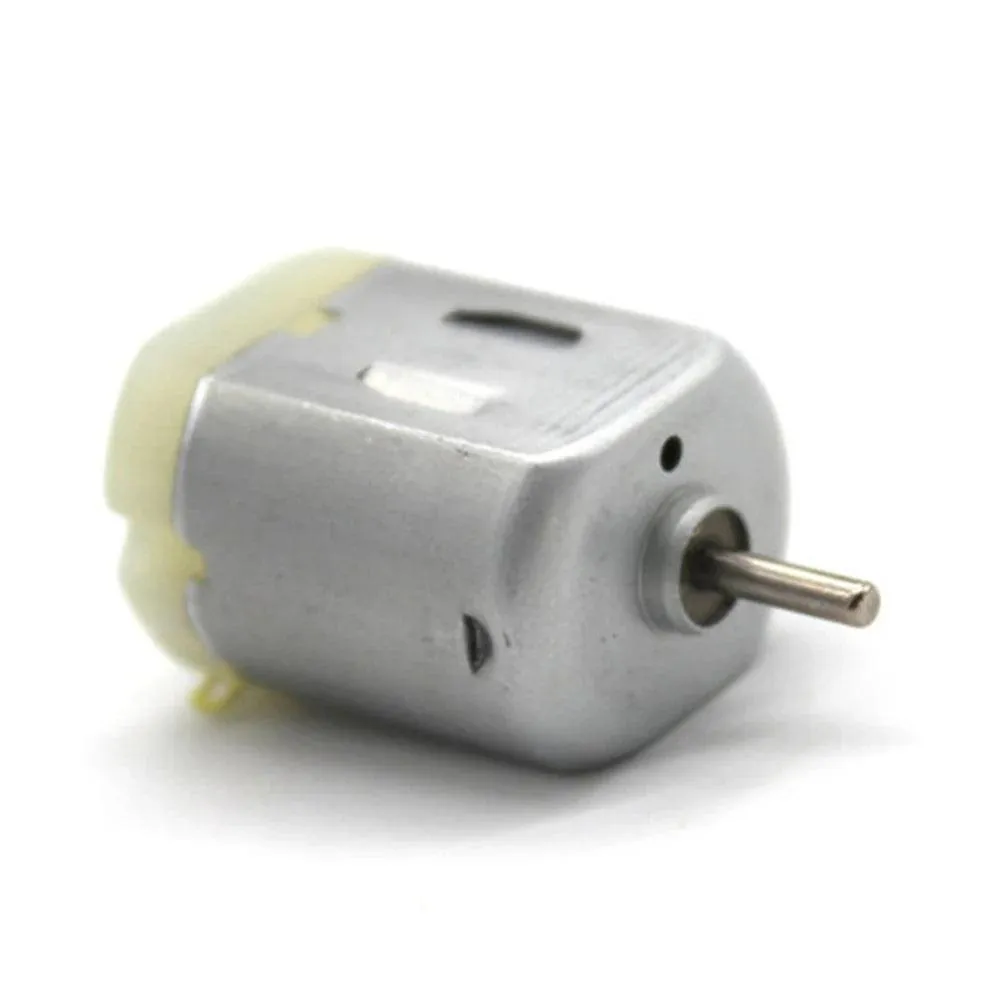

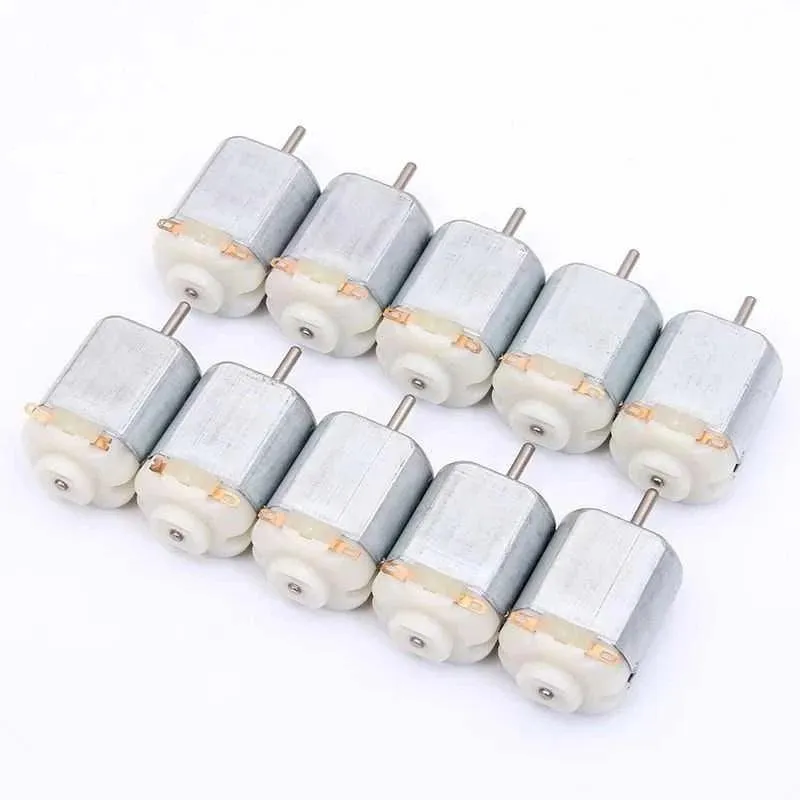

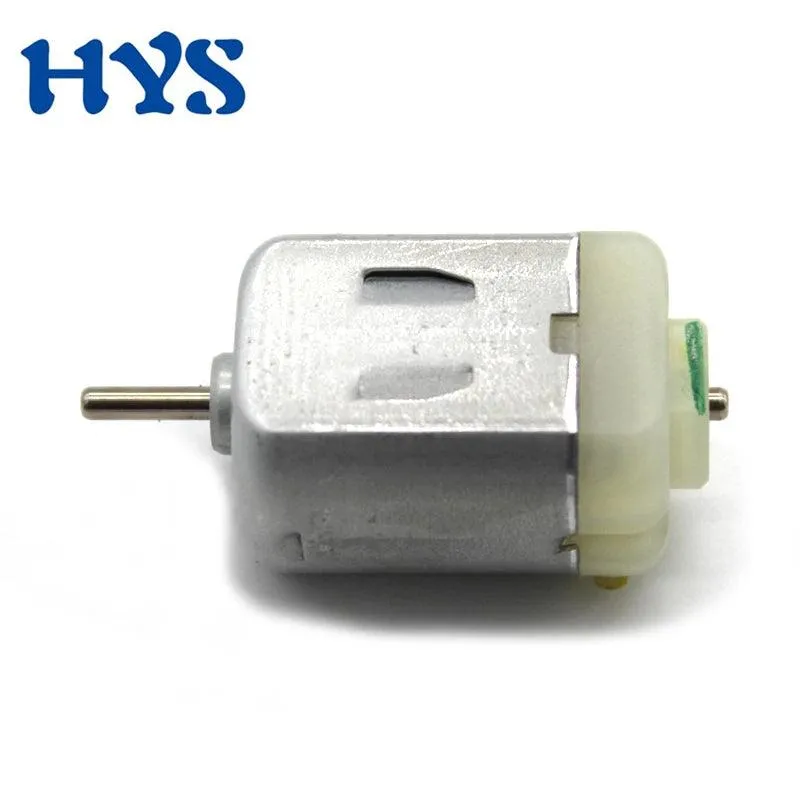

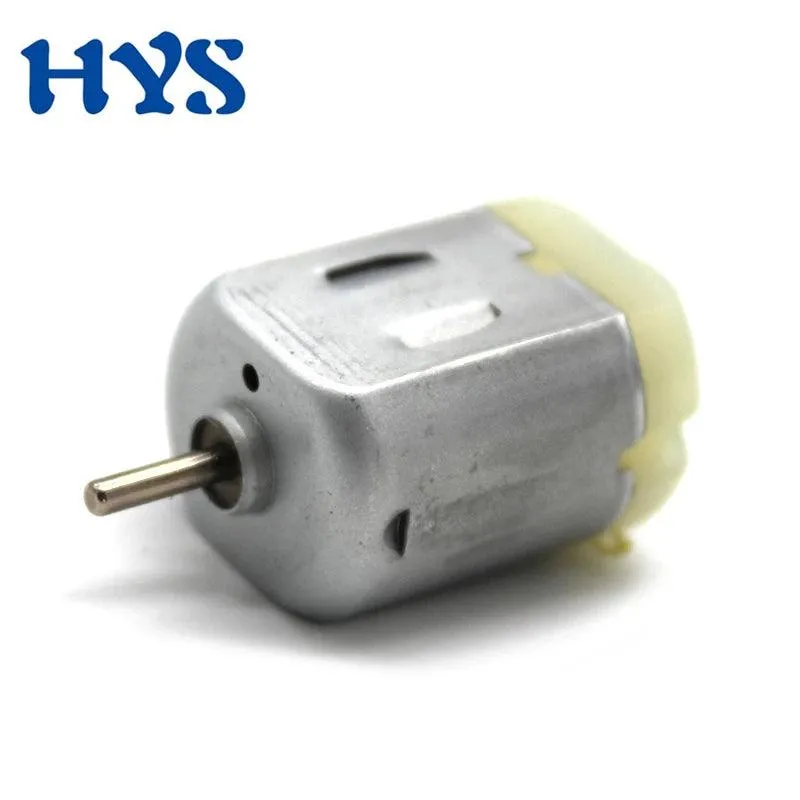

13Pcs 130 Micro DC Motor 3V-6V 7400RPM 14000RPM Miniature Electric Motor four-Wheel Motor Small DIY Toys Hobbies Smart Car
Brand Name: HYSMOTOR
Certification: CCC
Certification: ROHS
Origin: Mainland China
Commutation: Brush
Type: Micro Motor
Protect Feature: Drip-proof
Construction: Permanent Magnet
Model Number: 130 motor
This 130 motor uses a carbon brush and a large magnetic configuration, which has an excellent energy efficiency ratio! It is suitable for making a variety of small technical model toys. There are two specifications of embossed shaft and optical axis. The speed of the embossed shaft is faster than the optical axis.
Motor length: about 29mm (excluding shaft)
Motor width: 20mm
Motor thickness: 15mm
Step diameter: 6mm
Step height: 2mm
Motor shaft diameter: 2mm
Out shaft length: 8mm
Voltage range: DC 3v-6v
Optical shaft:
DC3v: 4200 rpm, no-load current 0.09A, stall current 0.3A
DC6v: 8000 rpm, no-load current, 0.1A, locked rotor current, 0.5A
