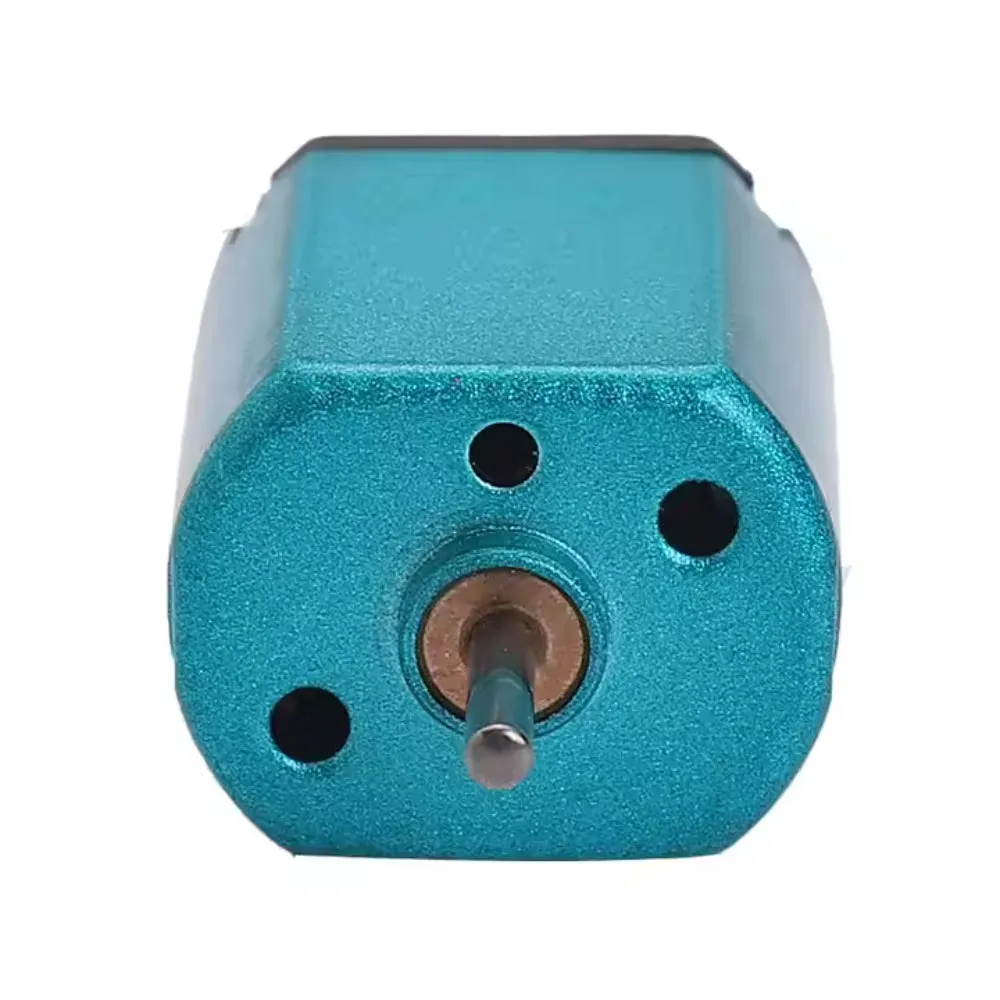

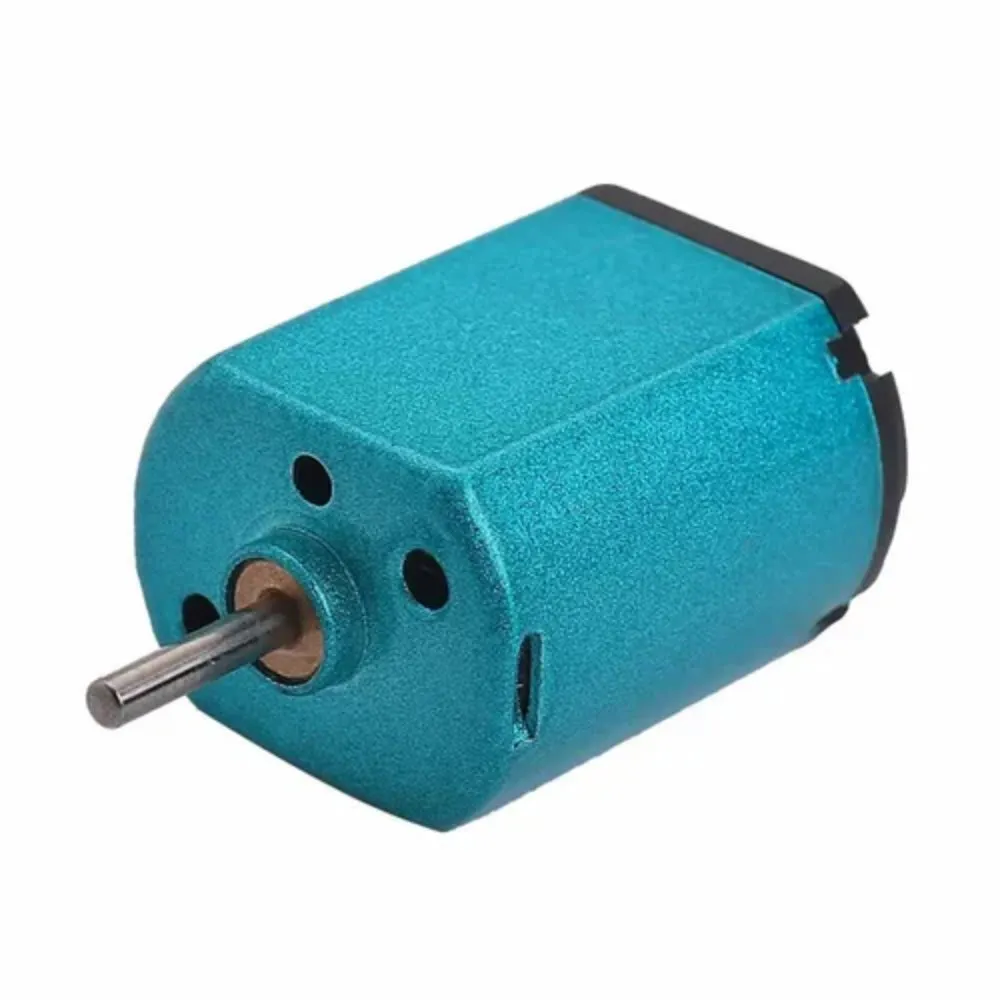

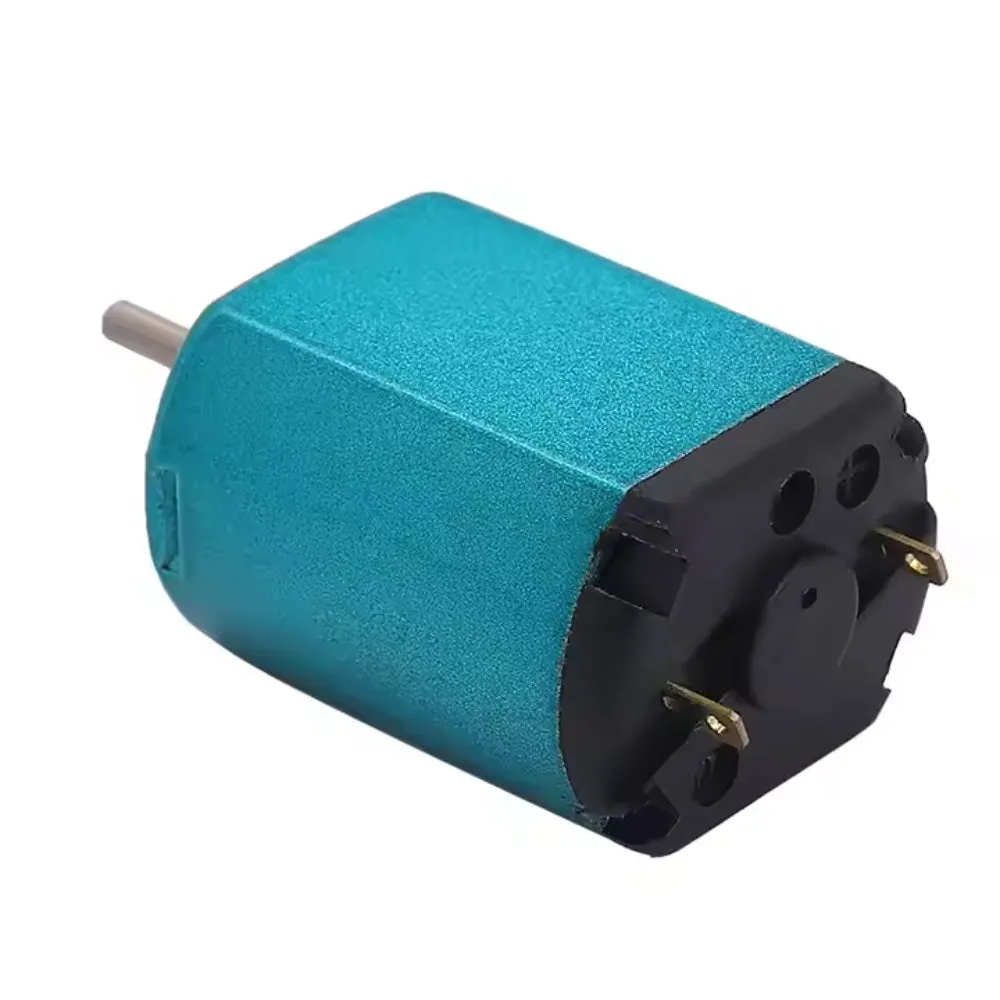

The 030 DC 2.4V Carbon Brush High-Speed Micro Motor is a professional-grade, high-performance motor designed for applications requiring rapid rotations at low voltage. It features a carbon brush mechanism, which enhances durability and longevity by reducing wear. With its compact size and lightweight structure, this motor is perfect for various small-scale devices that need reliable and efficient power. Available in a sleek blue design, it combines performance with aesthetic appeal.
Features:
Carbon Brush: The carbon brush system increases durability and extends the lifespan of the motor.Wide Voltage Range: Operates efficiently between 1.5V and 3.7V, providing flexibility for various power sources.
High-Speed Output: Reaches speeds up to 52,000 RPM at 3.7V, making it suitable for high-performance applications.
Compact Size: Its small and lightweight design is ideal for space-limited applications.
Efficient Power Consumption: Provides optimal performance with low current draw across a range of voltages.
Advantage:
High-Speed Precision: Fine-tune your projects with impressive speed.Compact and Lightweight: Perfect for miniature applications.
Carbon Brush Technology: Efficient power transmission and durability.
Applications
- RC vehicles (drones, cars, boats)
- Small electric tools
- Precision devices
- Miniature robotics
- DIY electronic projects
- Medical equipment (portable devices)
Technical Details
- product type: Brush DC motor
- Rated Voltage: 2.4(V)
- Rated Power: 1.68(W)
- Rated current: 0.7(A)
- Rated speed: 22500-45000(rpm)
- Screw hole: M 1.6
- Hole distance: 10 mm
- Voltage operating range: 1.5V to 3.7V
- Nominal Voltage: 2.4V
- Output shaft diameter: 1.5mm
- Output shaft length: 8.5mm
- At 1.5V: 23,000 RPM, 570mA
- At 2.4V: 36,500 RPM, 660mA
- At 3.0V: 43,000 RPM, 730mA
- At 3.7V: 52,000 RPM, 770mA
- Weight: 11 grams
Drawing
Package Includes
- 1 x 030 DC 2.4V Carbon Brush High Speed Micro motor Professional Grade Blue
